Report template elements

The templates for system value reports are designed to facilitate consistency and standardization in report presentation and allow faster generation of additional reports as required.

Note

The report templates are provided in *.dtfx file format like all other report templates in FactoryLogix Analytics.

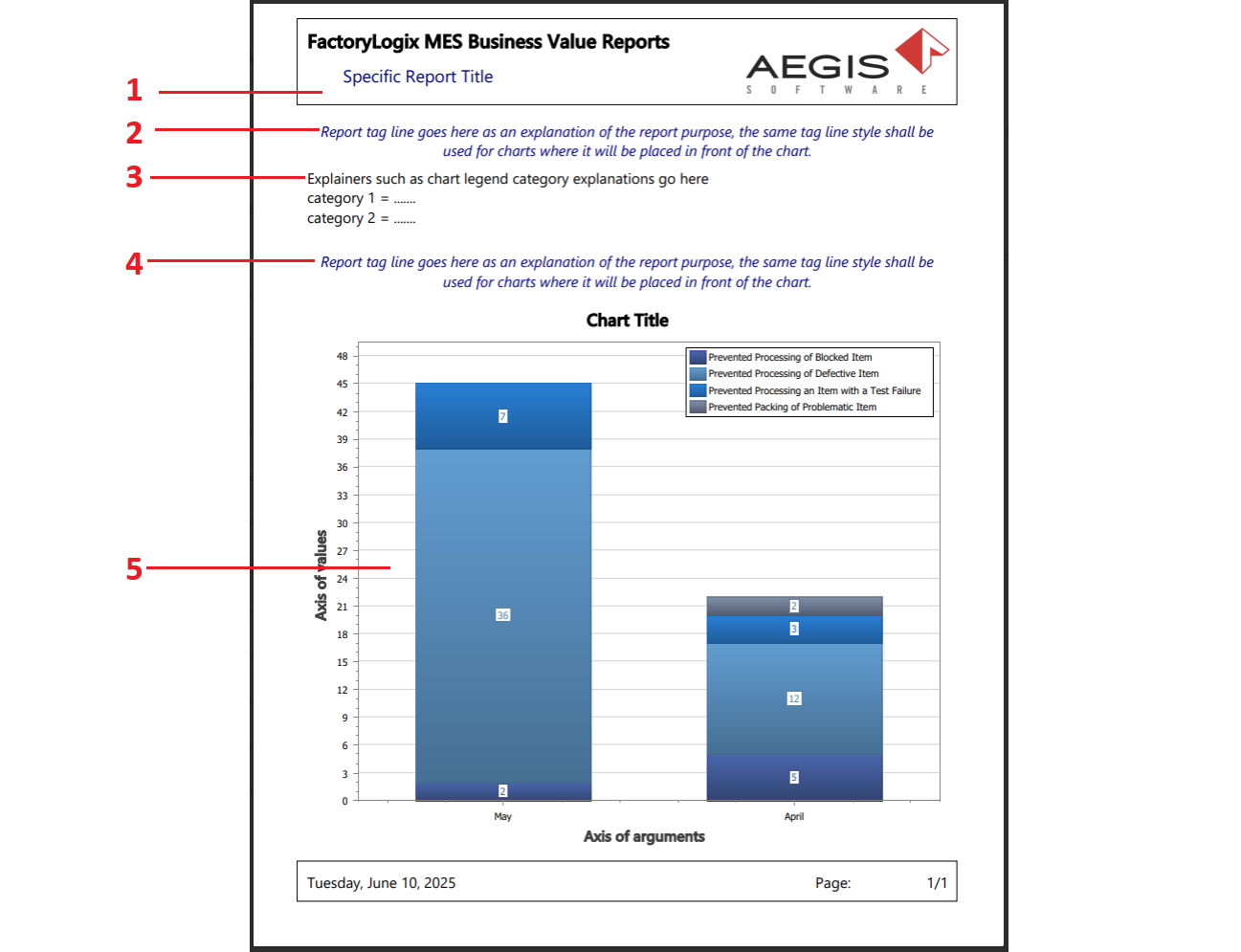

The following illustration shows the various parts of a system value report template:

1. Title – indicates specific value presented

2. Tag line – provides explanation of report purpose

3. Legend explainer – provides explanation of criteria presented

4. Chart tag line – provides explanation of chart

5. Chart – presents value data, reports can have one or more charts, charts are the only data element presented in the reports
