Print labels automatically for a Print Label activity

The Print Label activity in the Process Definition window includes a Label Printing Mode selection to allow you to set up to print labels automatically whenever a barcode is started.

1. In FactoryLogix Office, open a process definition and add a Print Label activity to the desired step in the process.

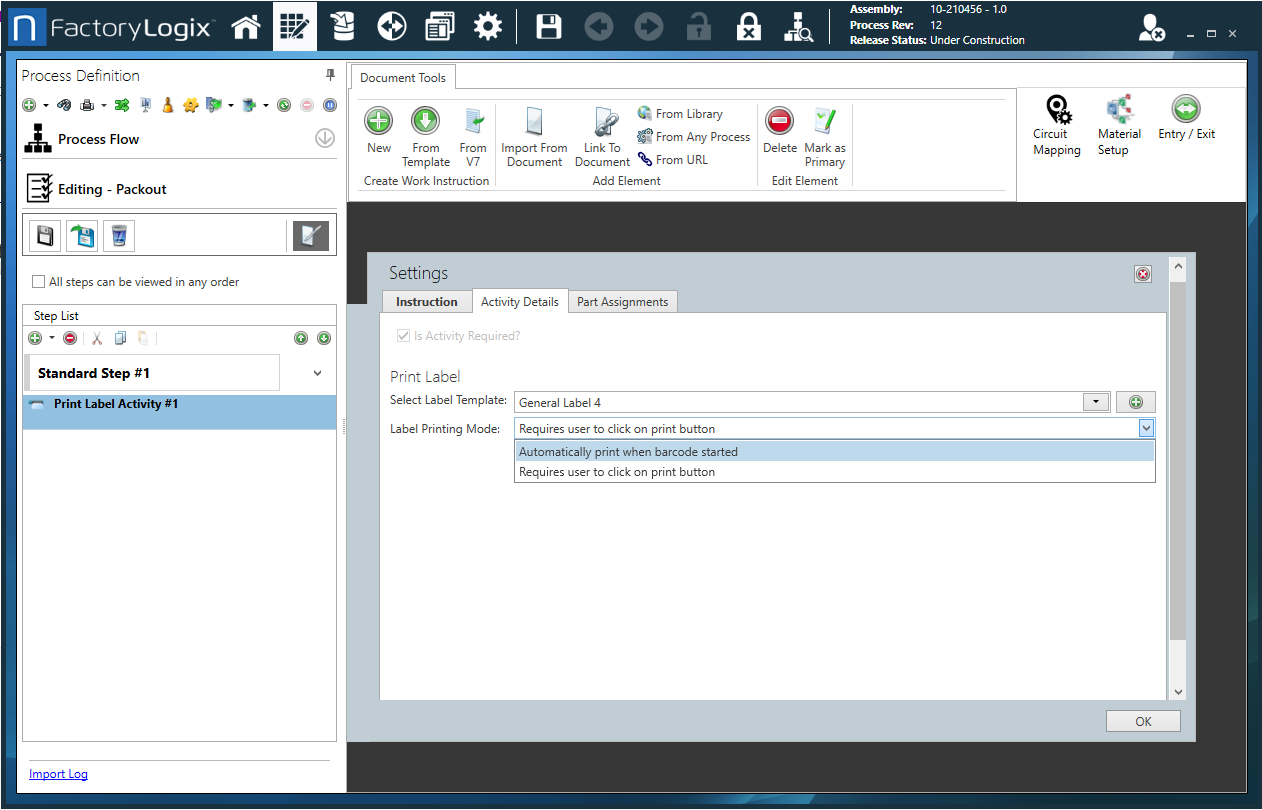

2. Double-click the Print Label activity, then select the Activity Details tab.

3. Use the Select Label template drop-down to select a label template for this activity.








4. Select Automatically print when barcode started from the Label Printing Mode drop-down.

   Now each time a barcode is started, a label will print automatically.
