Fiducials tab - options

The Fuji Nexim Setup dialog's Finducials tab options allow you to make adjustments to finducials for the current board and operation.

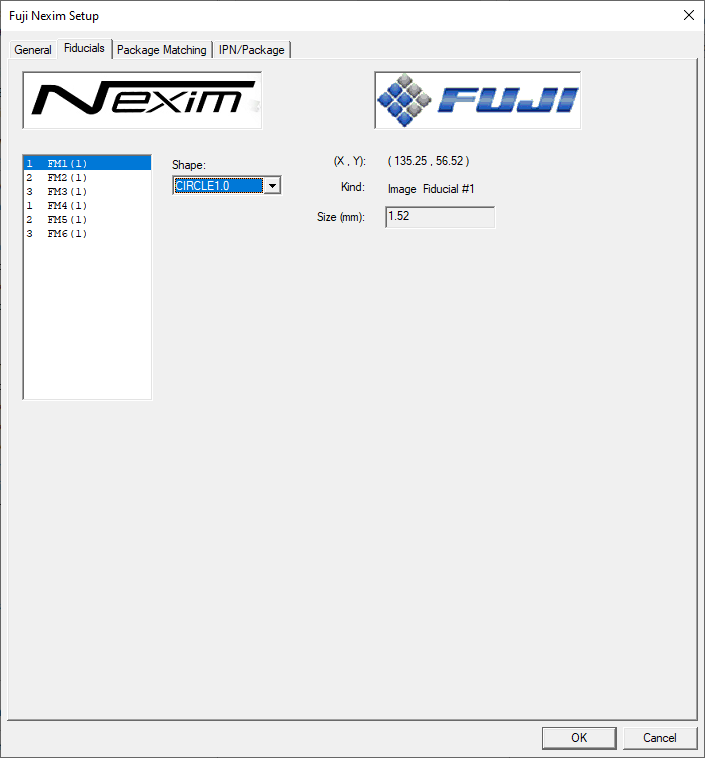

Fuji Nexim Setup dialog - Fiducials tab

Option

Description

Fiducial list

Displays a list of all board fiducials.

Shape

Allows you to modify the sahpe of a fiducial selected in the fiducial list.

Fiducial details

Thsi area of the dialog displays the X and Y coordinates of the selected fiducial, its kind, and its size (in millimeters).
