The Components tab of the Setup dialog displays information about all components on the board.

Option

Description

Component List

Displays a list of all components on the board.

Component details

Displays the reference designator of the selected component, its part number, CAD shape, library shape, description, number, X and Y coordinates of the component, and the rotation angle.

Error codes

N = The selected part number doesn't exist in the Yamaha database.

P = A package link to the part number doesn't exist in the database.

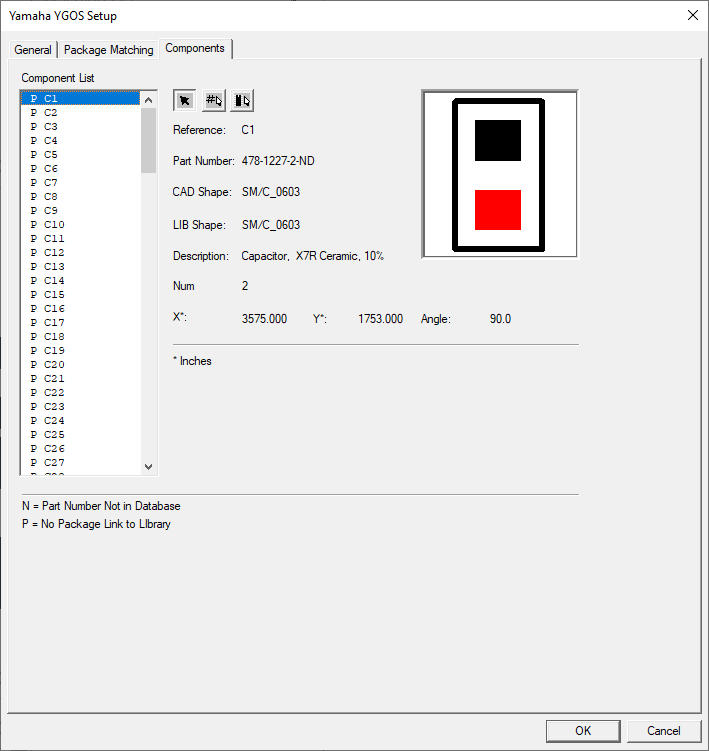

Yamaha Setup dialog - Components tab
